Artikelomschrijving
(afbeelding ter info)

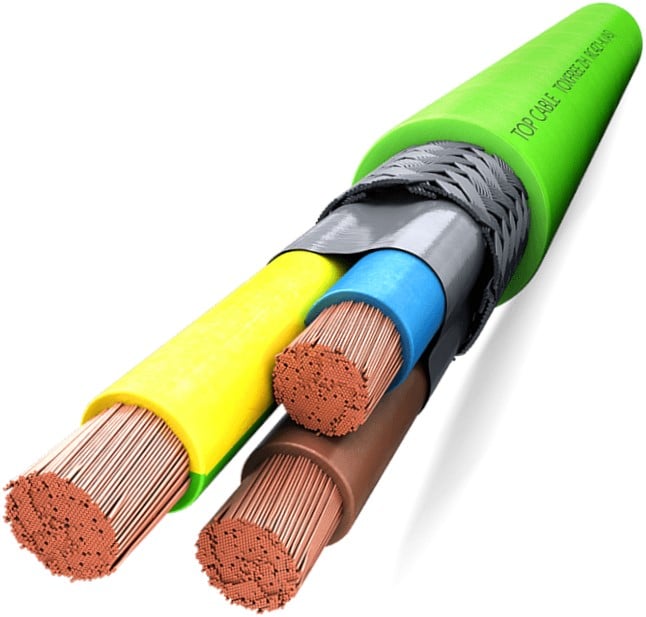

TOXFREE ® ZH
Z1C4Z1-K (AS) 3 x10 mm² Cca-s1a, d1,a1
(niet op website vermelde uitvoeringen op aanvraag)
Can be buried
Can lay in tubes
For industrial use
For permanent outdoor installation
Suited for public places
UV-resistant
Water resistant
For permanent outdoor installation
Resistance towards oil and chemicals
Fire retardant acc. to IEC 60332-3
Flame retardant acc. to IEC 60332-1
Low emission of corrosive gases acc. to IEC 60754
Low smoke emission during fire acc. to 61034
Electrical performance
Low voltage: 0,6/1 kV
Thermal performance
Maximum service temperature: 70ºC.
Maximum short-circuit temperature: 160ºC (max. 5 s).
Minimum service temperature: -40ºC (fixed and protected installations)
Minimum installation and handling temperature: -0ºC.
Approvals
EN 50575, IEC 60754, IEC 60332-1, IEC 60332-3, IEC 61034, IEC 60228, IEC 60502-1, IEC 60364-5-52, CE, RoHS
