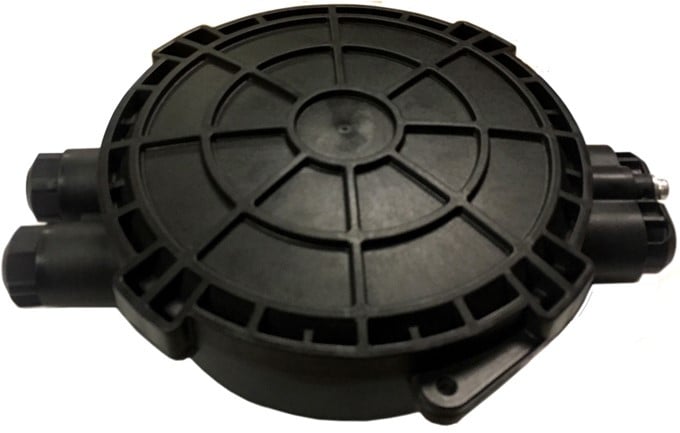

Key Features
• Robust glass filled polypropylene housing to withstand acidic and alkaline environments
• Mechanical compression technology provides cost-effective reliable cable sealing
• Sealed IP68 rated for below grade use
• Dual feed port and two branch ports
• Multi-cable grommets available for use as a drop closure
• 36 fiber splice capacity
• Compact for use in limited space applications
Product Specifications
Dimensions: L x W x H 295 x 220 x 90 mm
Weight 2 kg
Ambient Temperature -40 °C to +65 °C
Feed cable 10 – 17 mm OD

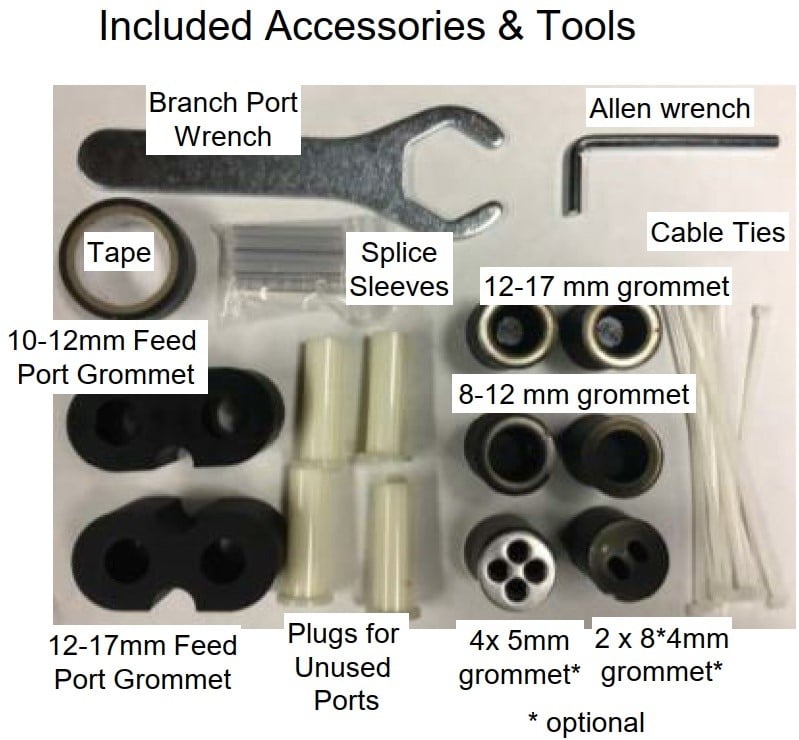

Branch ports 2 ports: grommets available for 8 - 12mm or 12 – 17 mm cable
Multi-cable grommets also available for: 4x 5 - 7 mm,
8x 3 – 5 mm, or 2x flat drop cable (8.2*4.5 mm)

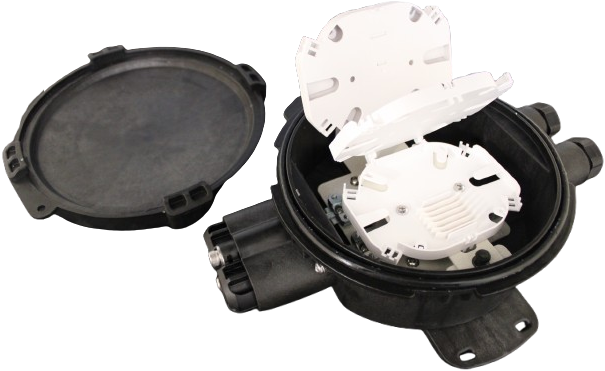

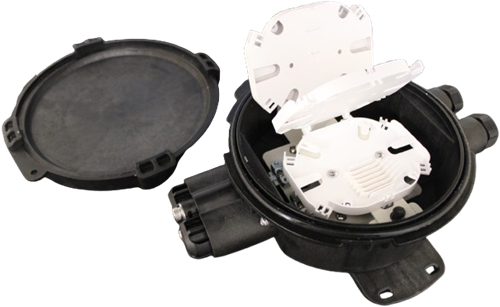

Splice capacity 3 trays, each 12 single fusion splice (total 36 splice)
Cable sealing method Mechanical (compression grommets)
Environmental rating IP 68 (2m depth)
